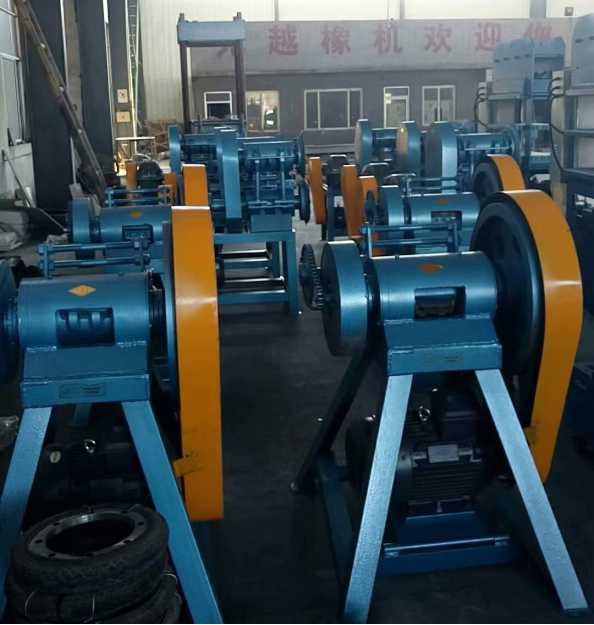

Waste tire recycling machine/rubber powder machine/Reclaimed rubber machine
1.Make waste tire break into powder;
2.10-30mesh rubber powder
3:no waste of the whole line
Process flow
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
1. Ring cutter
Function: will whole tire cutting into tire crown, the side of the tire and inner circle
|
Power |
Blades rotating speed |
Adapt tire |
Productivity |
Dimensions |
Weight |
|
3kw |
15R/MIN |
650-1200 |
30strips |
1150*850*1200 |
0.5t |
2. Strips cutter
Function: various tire, glue, glue board piece cut into long strips
|
Power |
Productivity |
diameter |
Output size |
Equipment size |
weight |
|
4kw |
20strips/h |
650-1200 |
25-55 |
1230*650*1580 |
0.8t |
3. Rim cutter
Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.
|
Power |
Productivity |
Output size |
Equipment size |
Weight |
|
7.5kw |
0.8-1.0t/h |
35*35 |
780*550*1210 |
0.8t |
4. Steel wire separator
Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation
|
Power |
Blades rotating speed |
Adapt tire |
Productivity |
Dimensions |
Weight |
|
11kw |
18R/MIN |
650-1200 |
1-2strips/min |
1.7*1.2*1.3m |
1500kg |
5.Rubber crusher
|
Type&Specification |
XKP-400 |
XKP-450 |
XKP-560 |
|
Feeding size |
3.5CM |
3.5CM |
3.5CM |
|
Discharging size |
10—30 mesh powder |
10--30 mesh powder |
10--30 mesh powder |
|
Rubber crusher throughput(kg/h) |
100--150kg |
250—300kg |
350—420kg |
|
Motor power(kw) |
45 |
60 |
75 |
|
Outside measurement(m) |
4.1×1.8×1.9 |
4.4×1.9×1.9 |
5.5×2.2×2.1 |
|
Weight(t) |
7.5 |
11 |
19 |
